Model: MCI-870
8-channel outdoor process monitor
It has eight isolated analog inputs in an IP54 metal enclosure. Each channel has its own processor and its own alarm and trip relays.
Features
- Inputs: RTD, thermocouple, mV, 0–10 V, 1–5 V, 0/4–20 mA
- A processor per channel; two alarm and trip relays
- Modbus over RS-485/232
- Seven-segment display readable in daylight, with several display modes and a unit per channel
- Per-input calibration; unused channels can be switched off
- Reports the fault type and channel; modular input cards swap out quickly
- Dust- and water-proof keypad with a protective cover, in an aluminium body
Applications
- Oil and gas plants and stations
- Pumping and compression stations
Installed in
Need a different voltage, size or interface? We will design and build the unit to your specification. To request a quote, send your request through the Atirame chat.
Request a quoteCatalogue and photos
Select a sheet to open it at full size.

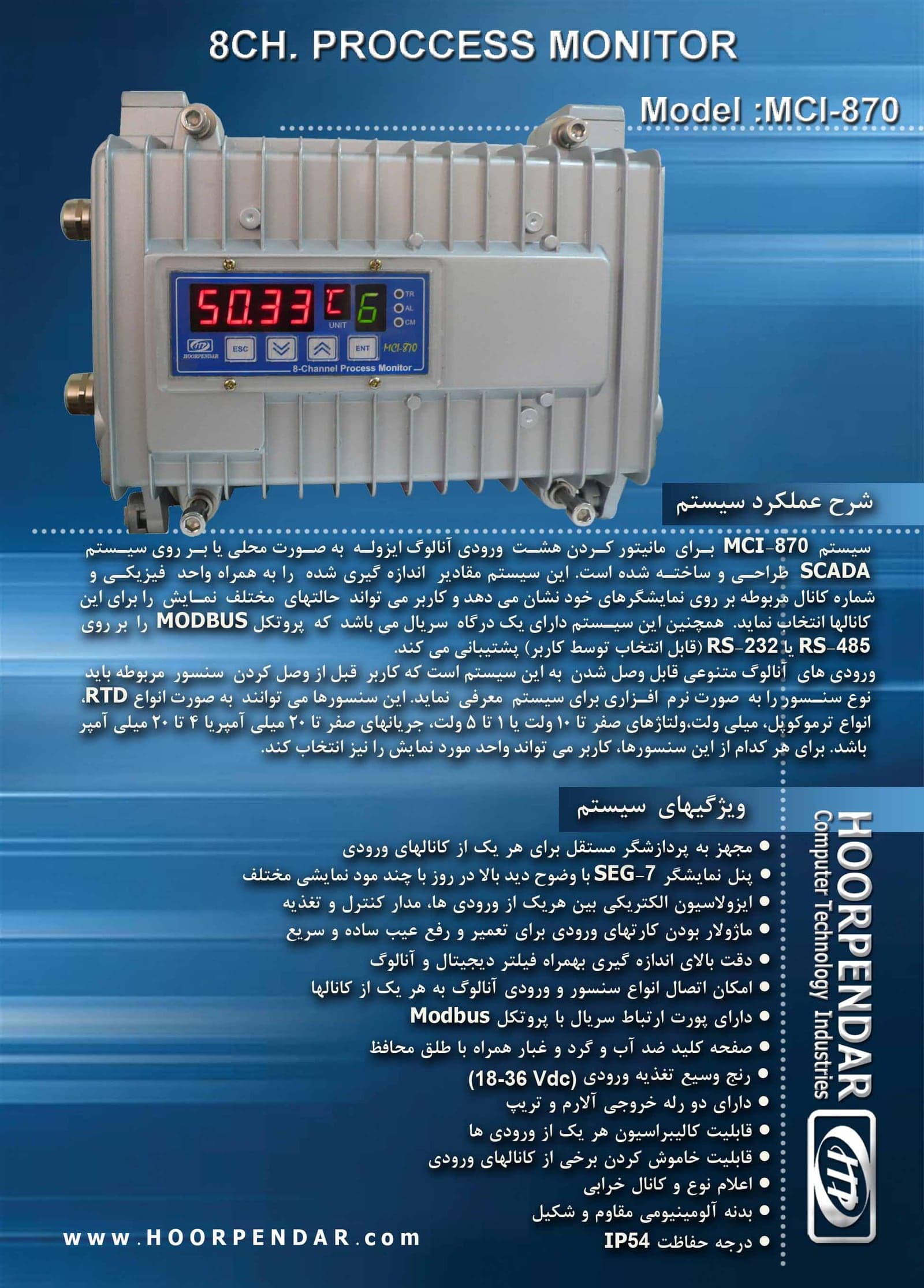

MCI-870 catalogue sheet
Technical data
| Channels | 8, isolated |
|---|---|
| Supply | 18 – 36 V DC |
| Protection | IP54 |
