Paperless recorders and data loggers
We build twelve-channel paperless recorders, chart recorder drivers and power-plant electrical data loggers, and collect data from protection relays and power analyzers.
Features
- 12-channel paperless recorder
- Data acquisition from relays and power analyzers
- Modular portable data logger: 16 analog inputs up to 100 Hz and 8 isolated digital inputs
- Two analog outputs (DC, sine, square and sawtooth up to 1 kHz) and 8 transistor or relay outputs
- Input modules for DC and RMS voltage, current and temperature, with optional isolators
- Software: signal names, gain and offset, limit alarms, live display and logging at two sample rates
- Stored data can be replayed and printed as charts by date and time
Applications
- Thermal power plants
- Hydroelectric plants
- Refineries and petrochemical plants
Installed in
Need a different voltage, size or interface? We will design and build the unit to your specification. To request a quote, send your request through the Atirame chat.
Request a quoteCatalogue and photos
Select a sheet to open it at full size.

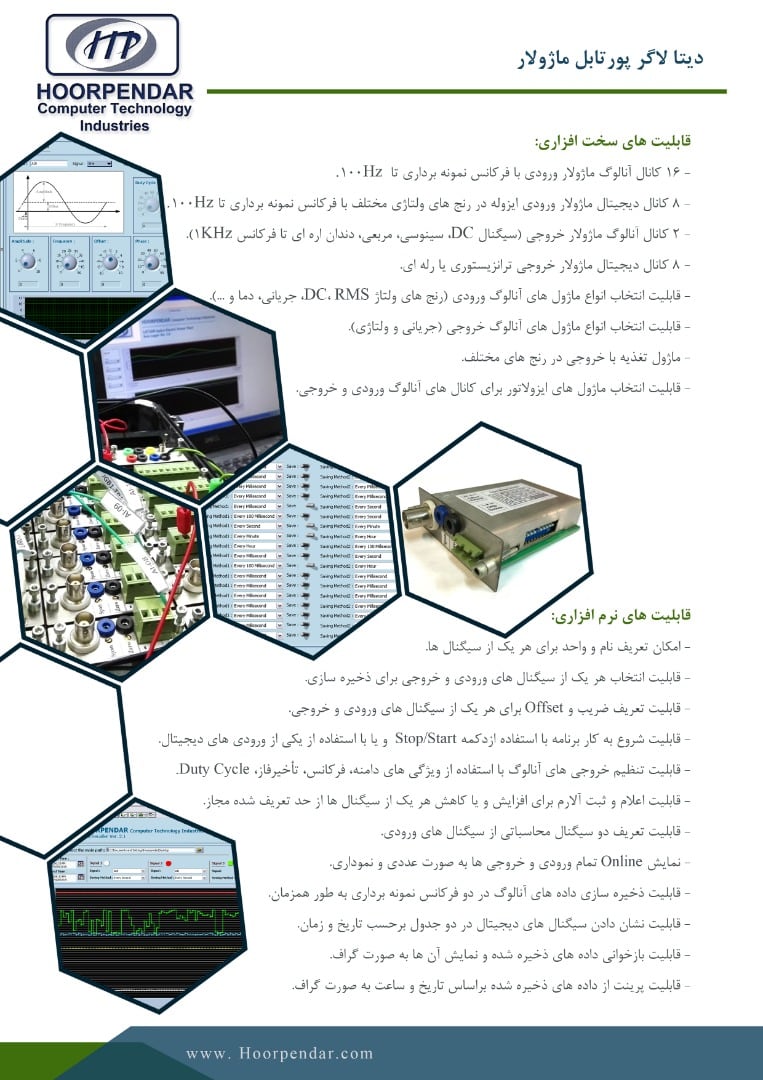

Modular portable data logger catalogue sheet
Technical data
| Analog inputs | 16, up to 100 Hz sampling |
|---|---|
| Digital inputs | 8, isolated |
| Outputs | 2 analog (up to 1 kHz) · 8 digital |
