Model: IGRP-120 · HED614 · HSR514 · HNR-100 · HKR-600
Turbine and furnace spark plugs
We make spark plugs for gas turbines, furnaces and boilers, including high-energy and long-electrode versions.
Features
- IGRP-120: stainless steel, rated to 1250 °C; special resistive insulator, very thin insulating shells and a special alloy body
- HED614: sparks up to 20 kV, with very thin insulating shells; HSR514: up to 3 kV
- HNR-100: boiler plug for high-energy pulsed ignition, with a resistive insulator that withstands very high heat
- HKR-600: long-electrode furnace plug up to 15 kV; the spark gap adjusts by at least 25 mm with a lock nut
Applications
- Industrial gas turbines
- Boilers and furnaces
Installed in
Need a different voltage, size or interface? We will design and build the unit to your specification. To request a quote, send your request through the Atirame chat.
Request a quoteWe install, commission and support this equipment in Ahvaz and across Khuzestan. Our projects and support in Khuzestan
Catalogue and photos
Select a sheet to open it at full size.

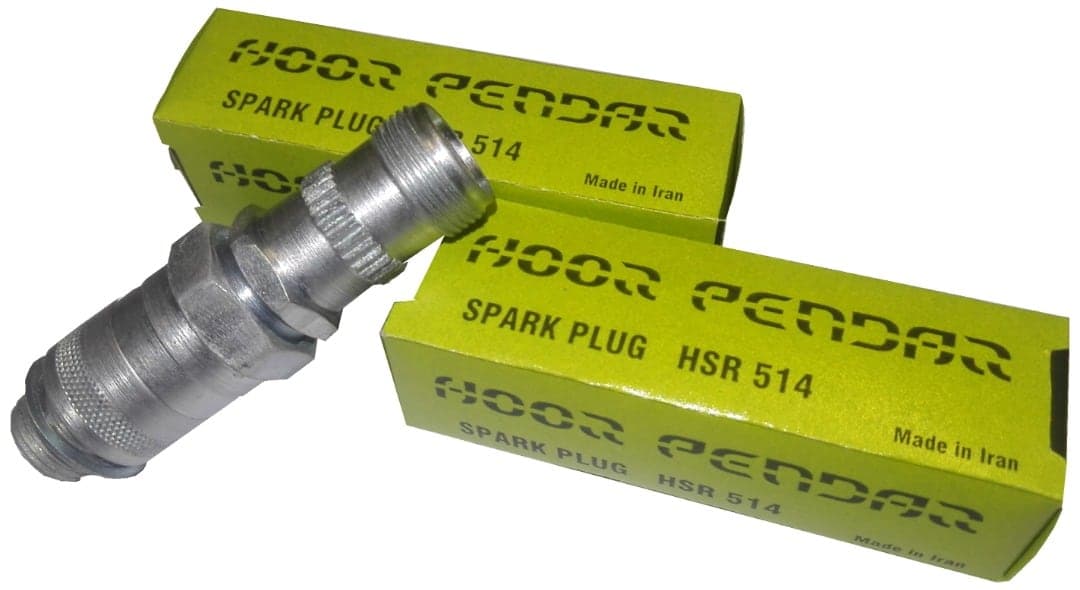

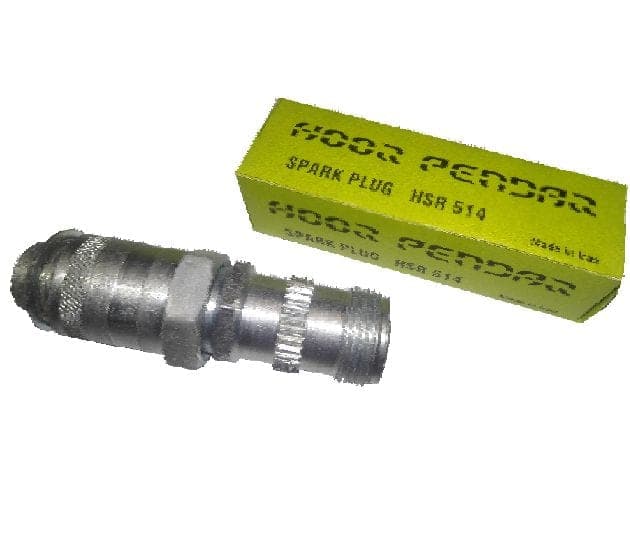

HSR-514 turbine spark plug

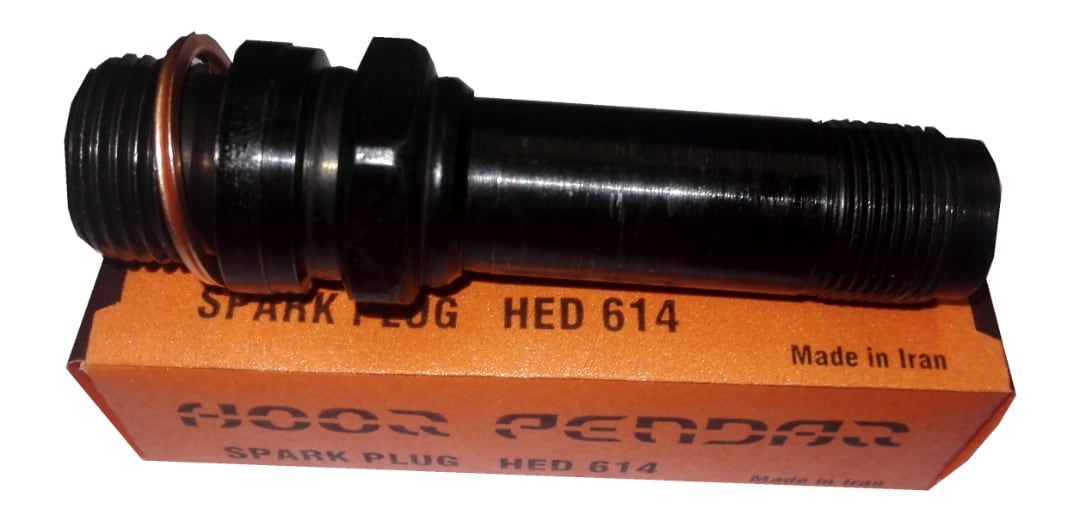

HED-614 turbine spark plug

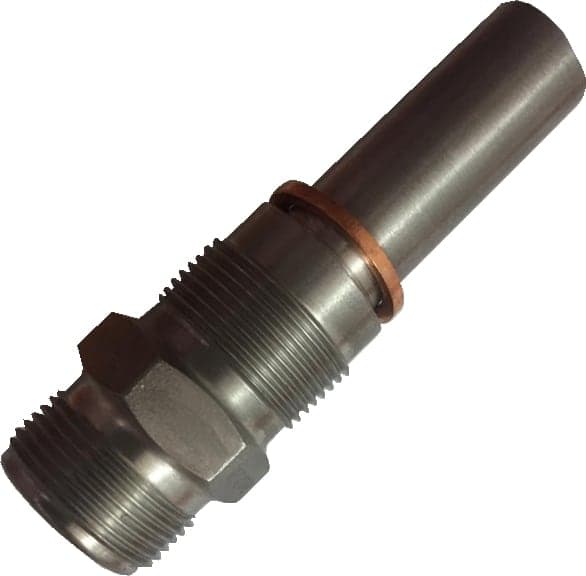

IGRP-120 turbine spark plug

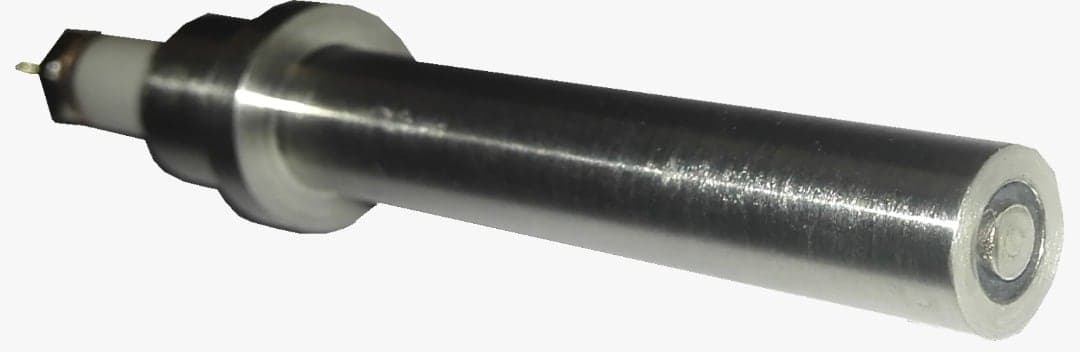

HNR-100 boiler spark plug

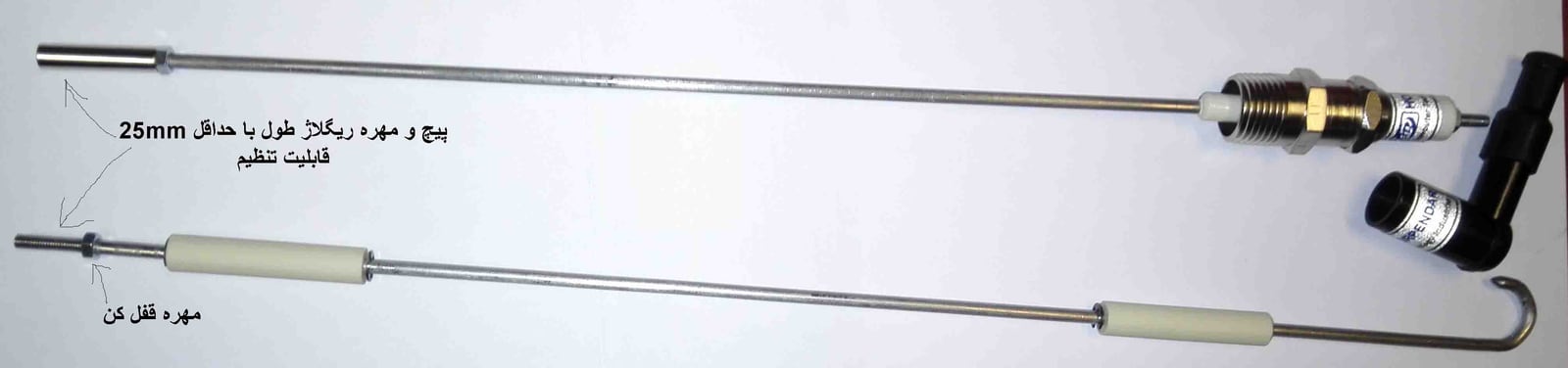

HKR-600 furnace spark plug with adjustable gap
