Model: IGRC-202 · IGSC-SL18 · IGNC-W72 · IGNC-RS75
Turbine ignition leads
We make high-voltage ignition leads for a range of industrial gas turbines, in armoured and silicone versions, built to the customer’s sample.
Features
- 20 kV insulation, up to 250 °C, stainless steel armour and nickel-chrome plated brass fittings
- High-voltage silicone lead up to 30 kV
- IGRC-202 and IGSC-SL18: rugged armour and a high-voltage core rated to 200 °C, for high-energy ignition
- IGNC-W72: stainless steel armour, rated to 180 °C; packed five to a box
- IGNC-RS75: two-piece, stainless steel armour, rated to 180 °C; each length is cut to order and the shorter piece is more flexible so it fits inside the box
Applications
- Industrial gas turbines
Installed in
Need a different voltage, size or interface? We will design and build the unit to your specification. To request a quote, send your request through the Atirame chat.
Request a quoteWe install, commission and support this equipment in Ahvaz and across Khuzestan. Our projects and support in Khuzestan
Catalogue and photos
Select a sheet to open it at full size.

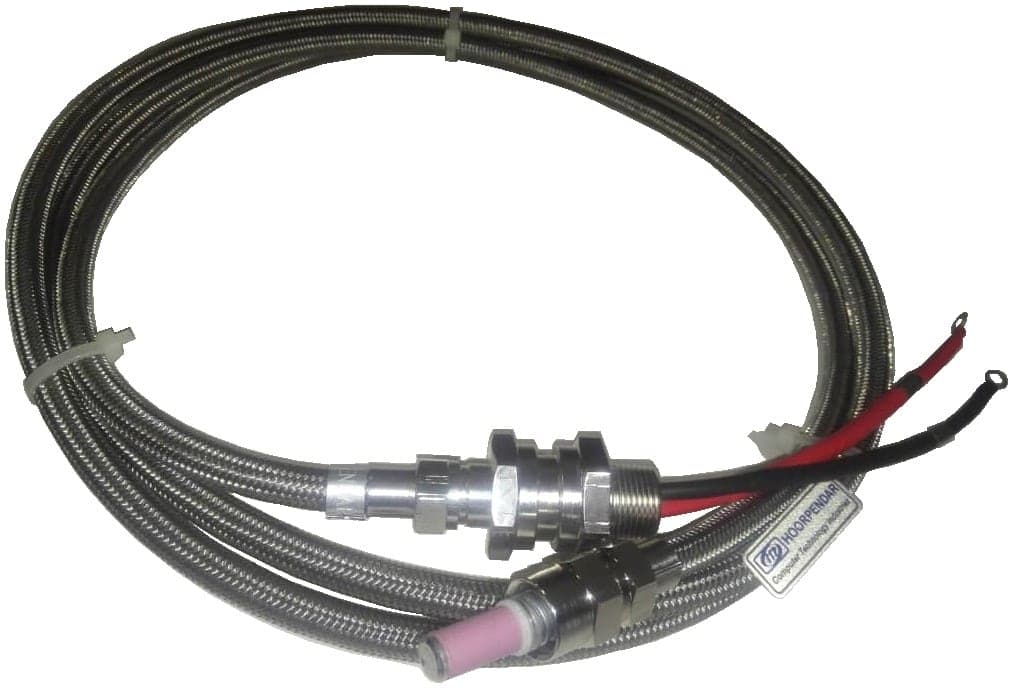

IGRC-202 ignition lead

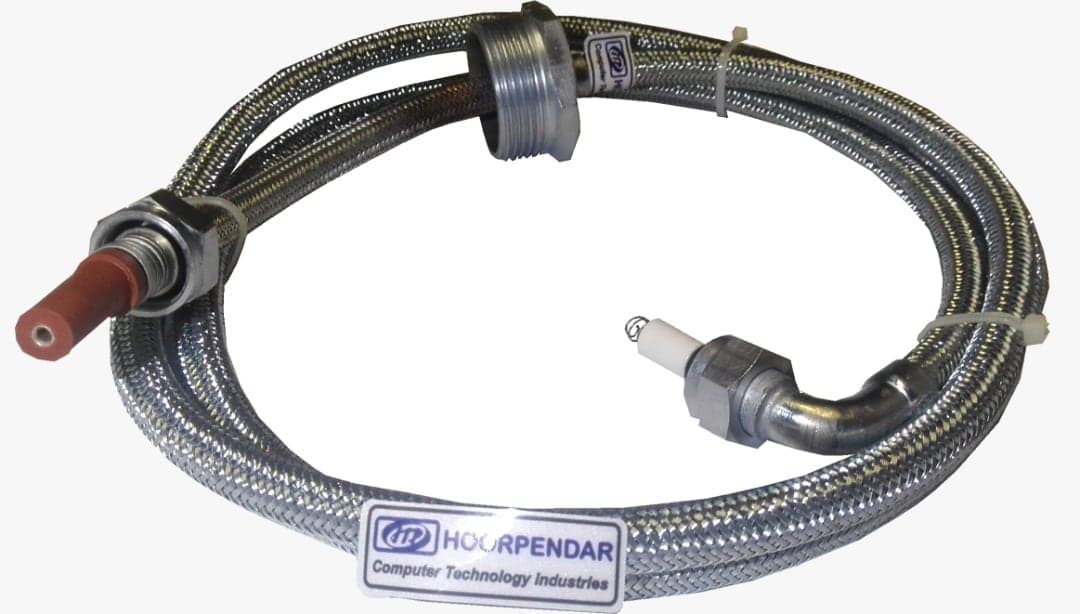

IGSC-SL18 ignition lead

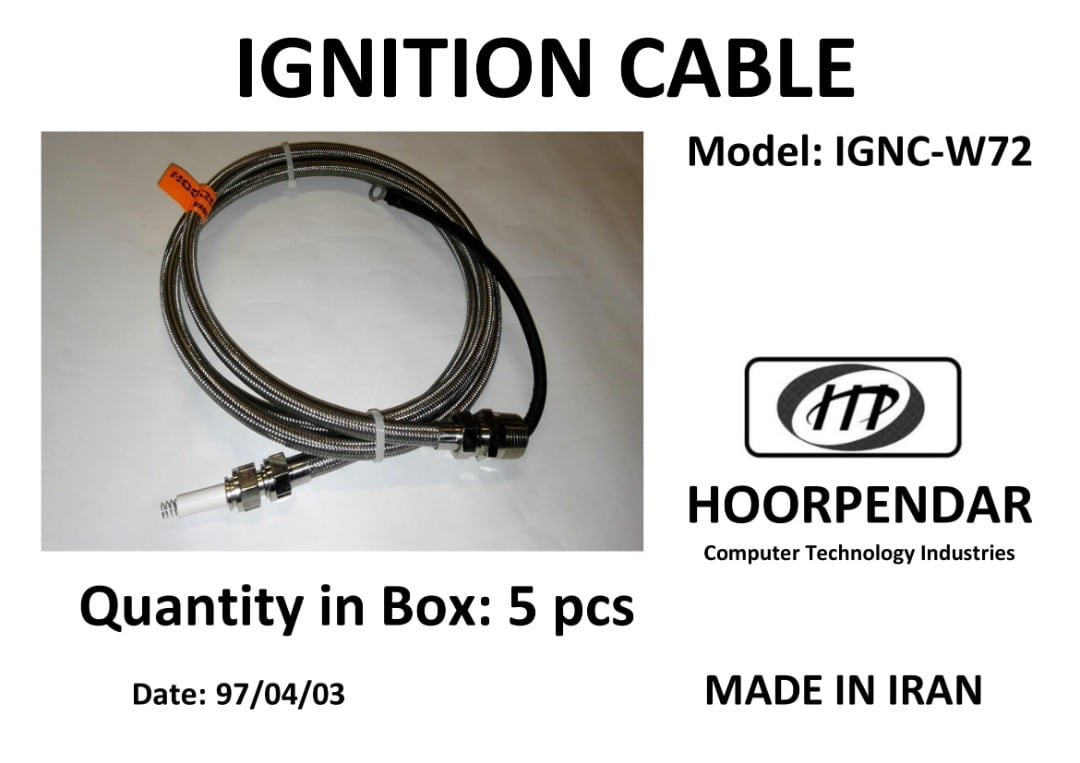

IGNC-W72 ignition lead

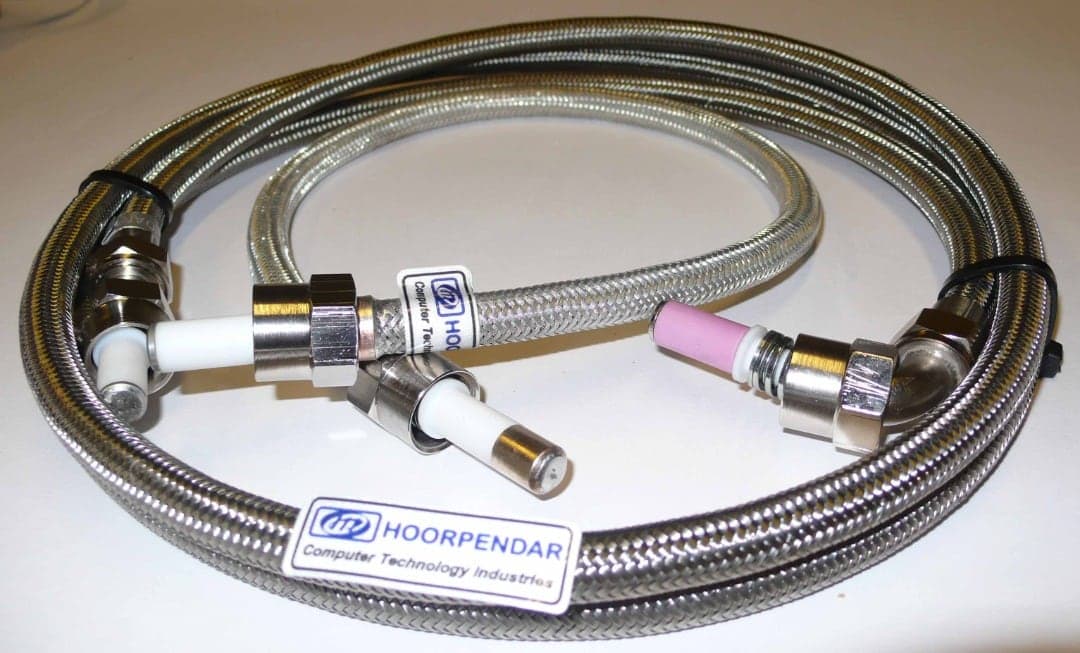

IGNC-RS75 two-piece ignition lead
