Model: IGN-2KRJ
High-energy ignition exciter for turbines and boilers
Produces a high-voltage, high-energy spark about three times a second. On the matching plugs the spark looks like a flame and lights gas and diesel fuel quickly. The box, size and connectors can be changed to suit the installation, and the unit can be fitted in an Exd explosion-proof enclosure.
Features
- 230/115 V AC or +24 V DC input
- 2000 V DC pulsed output, 3 per second
- Resin-filled metal housing
Applications
- Industrial gas turbines
- Boilers and furnaces
Installed in
Need a different voltage, size or interface? We will design and build the unit to your specification. To request a quote, send your request through the Atirame chat.
Request a quoteWe install, commission and support this equipment in Ahvaz and across Khuzestan. Our projects and support in Khuzestan
Catalogue and photos
Select a sheet to open it at full size.

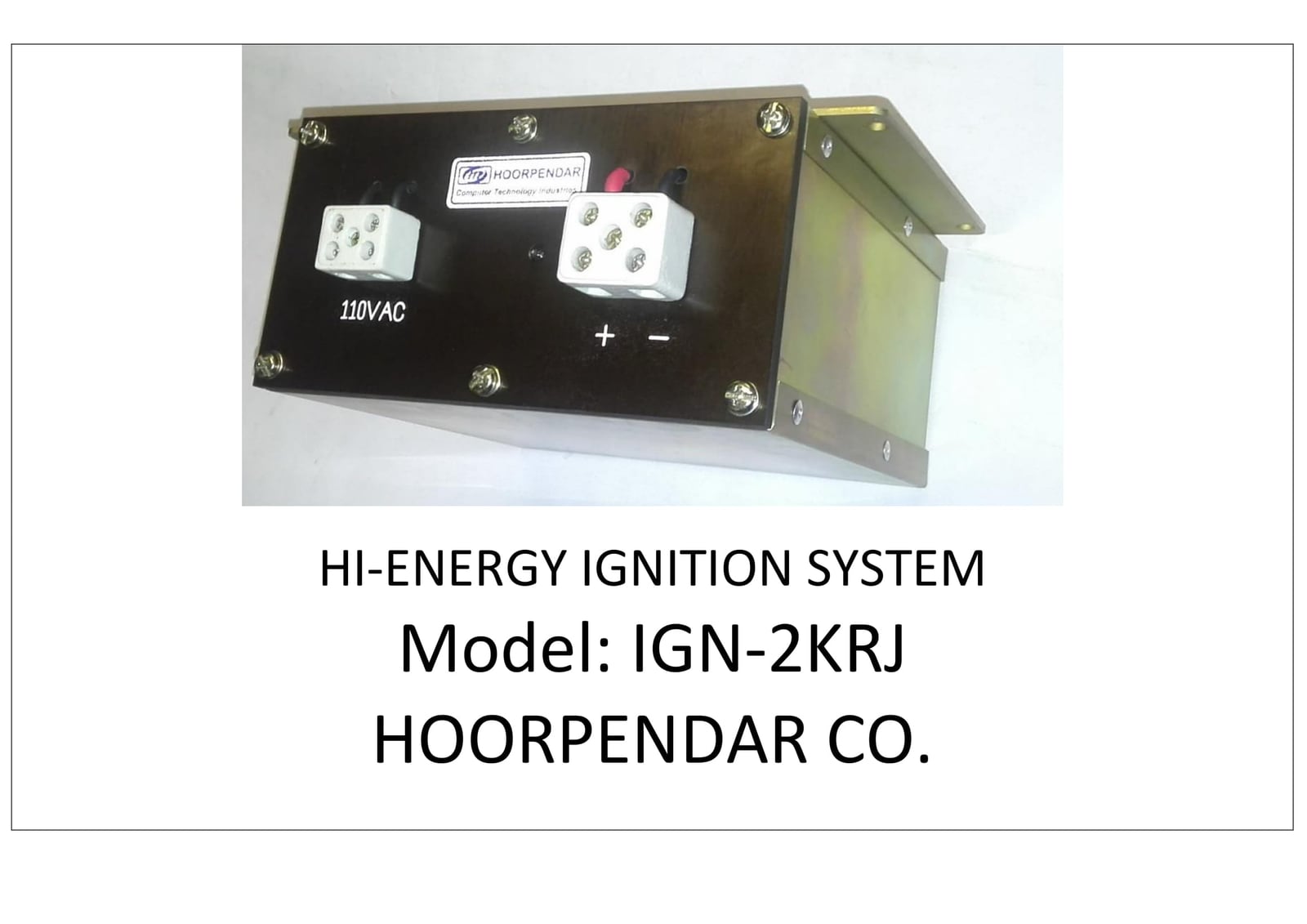

IGN-2KRJ high-energy ignition system
Related projects
- Ignition exciter for an industrial gas turbineTehran · 2021
