Model: UFD-760
UV fire detector for hazardous areas
Continuous fire watch for high-risk areas such as gas compressors and gas turbines. It took two years of in-house research and development.
Features
- Detects a 1 cm² flame at 5 m
- CPLD logic; blind to sunlight
- Fail-safe NO/NC contacts
- Explosion-proof stainless steel or anodized aluminium body
- Adjustable sensitivity and output delay
- Analog output proportional to flame size; LEDs for supply and fault relay
- Modular parts; we supply spare parts and sensors ourselves
Applications
- Industrial gas turbines
- Pumping and compression stations
- Refineries and petrochemical plants
Need a different voltage, size or interface? We will design and build the unit to your specification. To request a quote, send your request through the Atirame chat.
Request a quoteCatalogue and photos
Select a sheet to open it at full size.

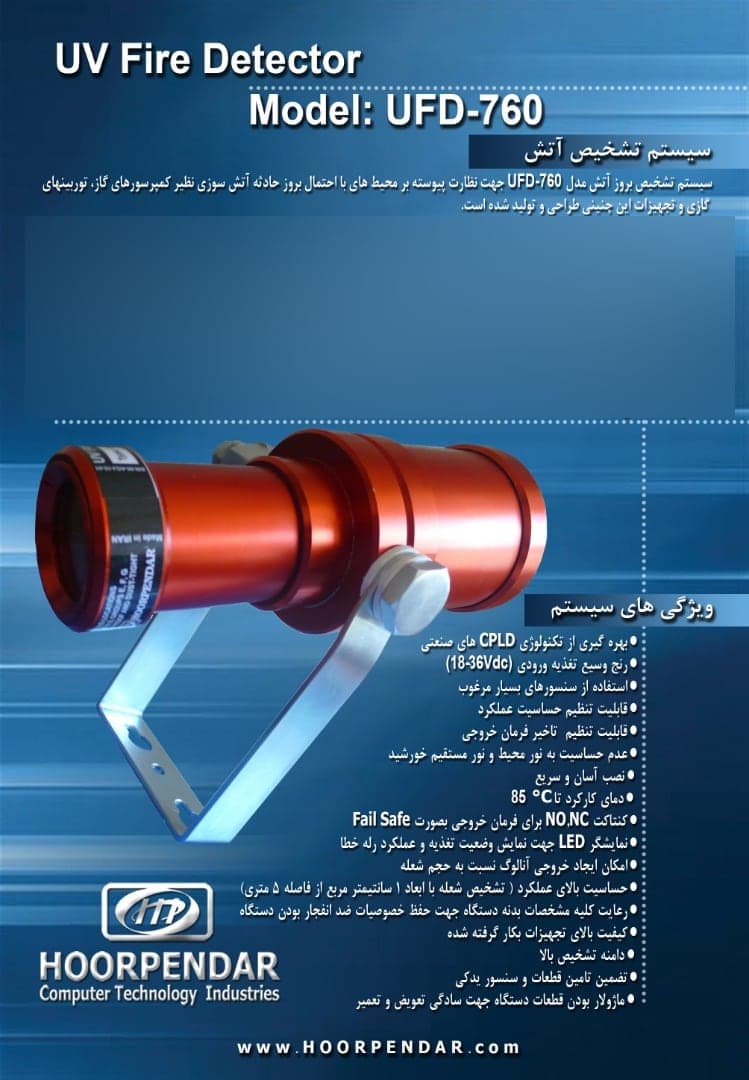

UFD-760 catalogue sheet
Technical data
| Supply | 18 – 36 V DC |
|---|---|
| Operating temperature | up to 85 °C |
| Sensitivity | 1 cm² flame at 5 m |
