Model: SAL-82
Compact alarm panel
This compact window-type panel is made for local control panels and comes in a simple and a controller model. The simple model lights the alarm windows with bright LEDs. In the controller model, an internal processor reads the signals, announces and logs the alarms and runs ISA S18.1 sequences. Both are modular and built with any number of windows.
Features
- Window labels change easily from the front; 60 × 30 mm windows
- Test, acknowledge, reset and horn-off buttons
- Selectable alarm input voltage: 12, 24, 48, 120 or 240 V; all inputs isolated
- Alarm colour (red, green or amber) and NO or NC inputs set by DIP switches at the back
- Controller model: horn, fault and WDT relays; optional RS-232, RS-485 and Modbus
- Modular cards in a standard 3U sub-rack, with industrial terminals
Applications
- Hydroelectric plants
- Oil and gas plants and stations
- Control rooms and control panels
Installed in
Need a different voltage, size or interface? We will design and build the unit to your specification. To request a quote, send your request through the Atirame chat.
Request a quoteCatalogue and photos
Select a sheet to open it at full size.

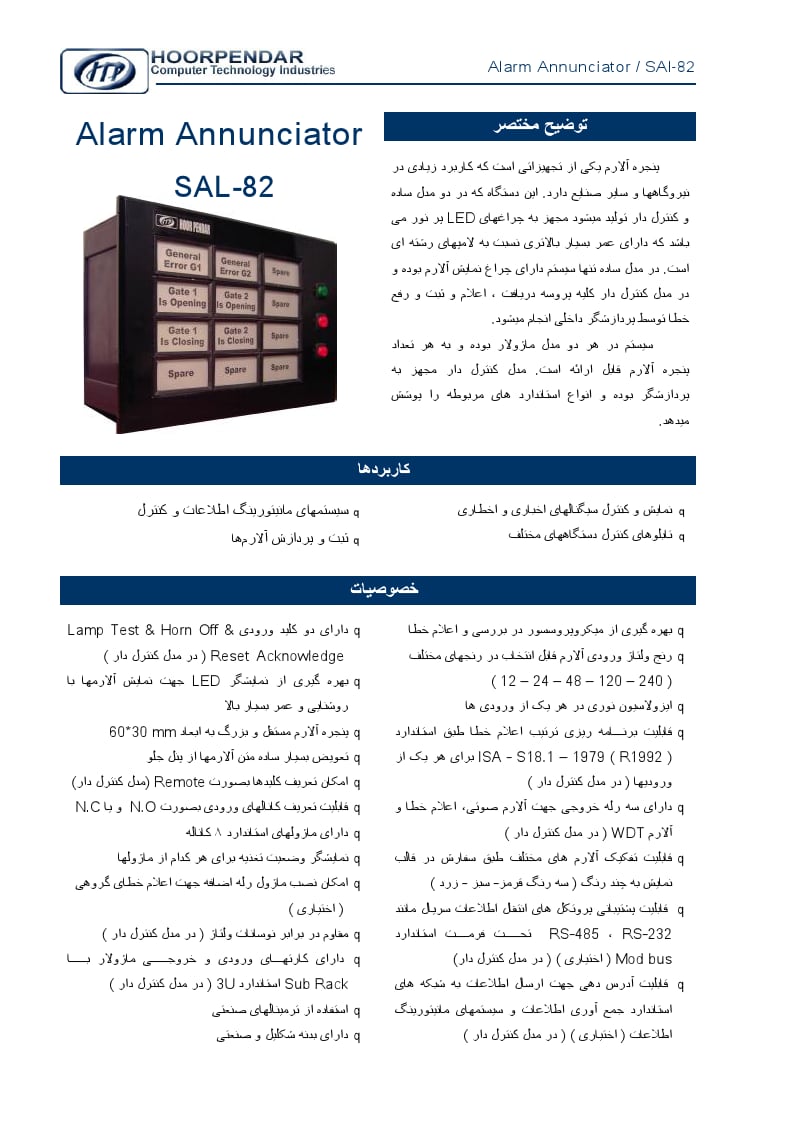

SAL-82 alarm annunciator catalogue sheet

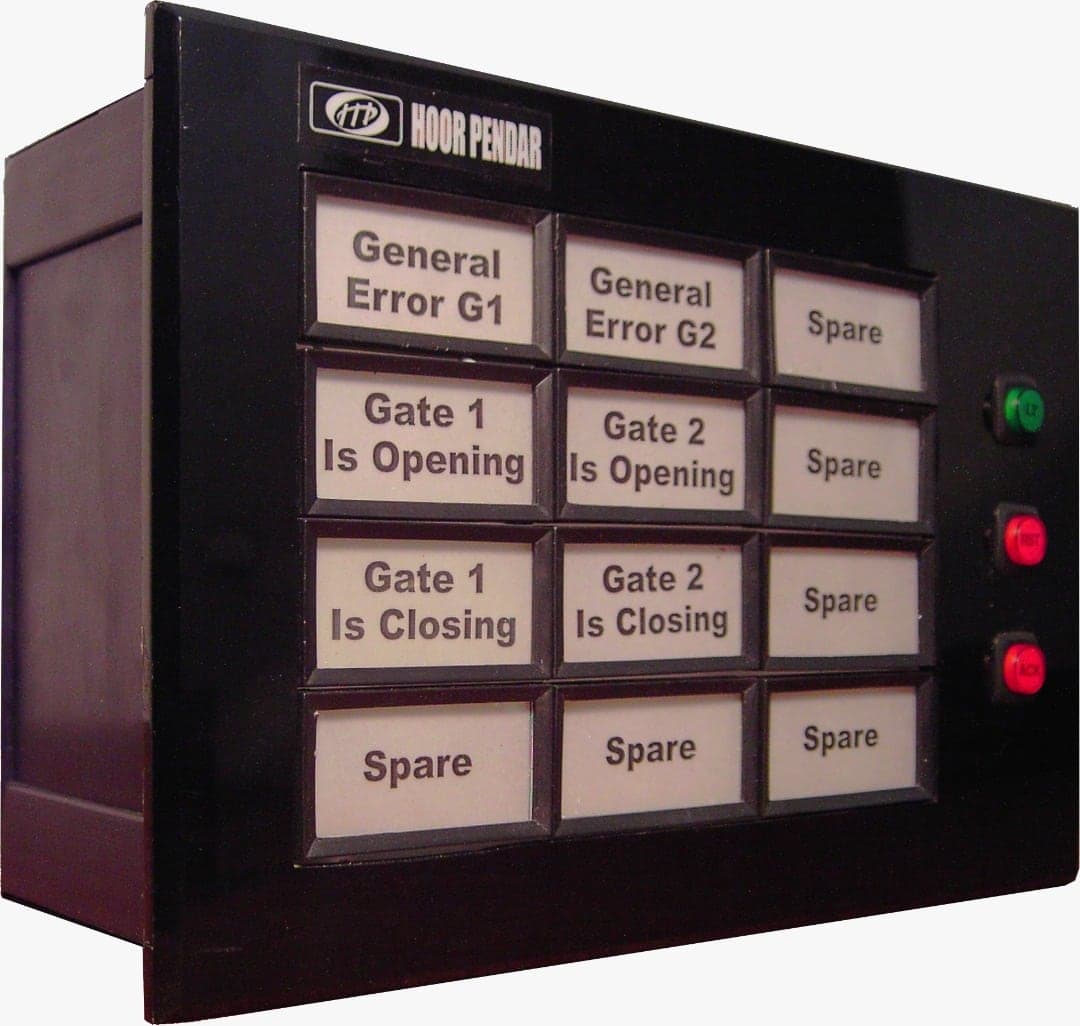

SAL-82 alarm panel
Technical data
| Input voltage | 12 / 24 / 48 / 120 / 240 V |
|---|---|
| Window size | 60 × 30 mm |
| Standard | ISA S18.1-1979 (R1992) |
